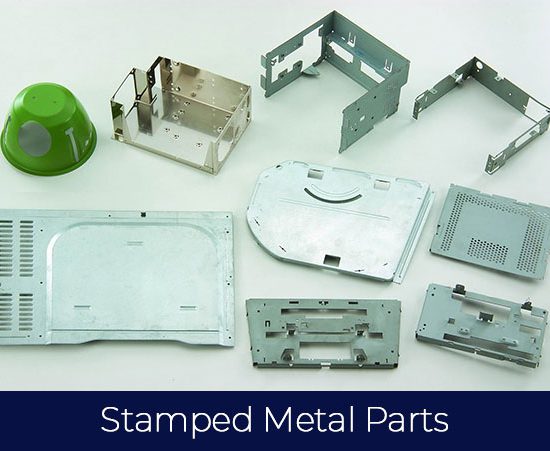

Metal Stampings

Innovative Tool & Design Inc.

Innovative Tool and Design, Inc.  is capable of manufacturing conventional metal stamping, deep draw, Specialty Processes such as Indie tapping and or Indie assembly, ferrous and nonferrous materials, Pre pated and bare materials, Ranging thickness  from .020″ to .250″, depending on the Geometry and the nature of the product. Innovative Tool and Design, Inc..  Welcomes short-run, complex geometry components.

We are committed to the automotive, Hardware  and electrical industries.  We service not only the current market but the aftermarket as well. We handle all aspects of a project, from stamping, coating, welding, and assembly. As a TS 16949 certified company We specialize in medium to high volume production runs.  We can also assist and supply our customers with the  development and manufacturing of  prototypes prior to mass production.

To learn more about our processes and capabilities, including secondary services, please contact Innovative Tool and Design. Inc, sales representative.

Metal Stamping Specifications

General Capabilities Contract Manufacturing
Prototype
Industry Focus
Aerospace
Agricultural
Automotive
Appliance
Communications
Commercial
Consumer Goods
Construction
Electronics

Energy

  • Solar
  • Wind

Furniture
Medical
Military
Semiconductor
Telecommunications

Intended Application
Appliances
ATV (All Terrain Vehicles)
Batteries
Decorative
Electric Motors
Faucets
Lighting Fixtures
Networking Equipment
Door (Automatic/Manual)
Automotive Aftermarket
Refrigeration
Pumps
Furniture
Solenoids
Gaming Industry
Tube Fabrication
Maximum Press Rating 500 tons
Part Length Max
48 in
1219.2 mm
Part Width Max
96 in
2438.4 mm
Part Thickness Max
.250-.500 in (Depending on application)
6.35-9.525 mm
Fork Lifting Capacity Max
10,000 lbs
Crane Capacity Max
6 ,000 lbs
Tolerance (+/-) ±.0005 in
±.0127 mm
Industry Standards ISO
International Organization for Standardization

  • ISO/TS 16949

ITAR
International Traffic in Arms Regulations (Compliant)
Mil-Spec
Military Specifications
PED
Pressure Equipment Directive
RoHS
Restriction Of Hazardous Substances (Compliant)

Production Method
Coining/Swage
Compound Die/Blank Through
Deep Drawn/Form
Pierce Die
Progressive Die
Production Capabilities Complex
Work with small coils to 15M pound coils
Flat stock
Extrusions
Automatic high speed presses and feedlines
Or
Single stroke secondary and hand fed operations
Experienced with obtaining and/or maintaining the cosmetic appearance of your parts.
Production Volume Min
1 unit
Prototype and short run to medium and high volume
Monitoring and Control Equipment
Infra Red Retro-Reflective Lasers
Fiber Optics
Load Tonnage Monitors
Proximity Sensors
Cameras
Various Types of Die Protection Equipment
Materials
Aluminum
Beryllium Copper
Brass
Carbon Steel
Copper
Leather
Magnesium
Nickel
Nickel Alloy
Plastics
Phenolic Kraft Paper
Stainless
Coiled
Flat Stock
Extruded
Thin Material
Tubing
Wire
Coated
Perforated
Polished
Stamping Features
Coated
Coining
Louvered
Stretch Formed
Contour Formed
Cold Form
Countersunk
Embossed
Enameled
Flat
Heat Treated
Numbering
Ornamental
In Die Tapping
Additional Services Provided
Assembly
Consulting
Networking
Deburring
Design
Heat Treating
Plating
Packaging
Painting
Powder Coating
Riveting
Stress Relieving
Tapping
Trimming
Welding
File Formats AutoCAD (DWG)
DXF
Drawing Interchange Format, or Drawing Exchange Format
IGES
Initial Graphics Exchange Specification, ANSI file format.
JPG or JEPG
Joint Photographic Experts Group
MasterCam (MC10 & UP)
PDF
Portable Document Format
STEP Standard for the Exchange of Product Model Data
TIFF
Tagged Image File Format
Unigraphics (PRT)
